Eliet GZC 750 Seeder (Honda GX200)
Eliet GZC 750 Seeder (Honda GX200)
Couldn't load pickup availability

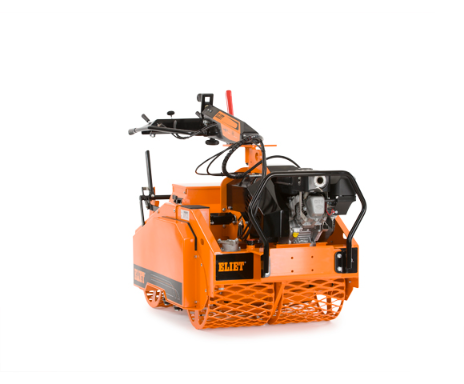

ELIET GZC 750 (Hydrostatic) Seeder with Honda GX 200 Engine
It is easy to manoeuvre, easy to operate and provides a first class finish.
The ELIET GZC 750 seeder is another trustworthy partner in the sowing of new turf. The GZC 750 lawn seeder offer professionals the chance to have various operations combined in one machine and thus effortlessly sow complex lawns quickly and at a high standard ensuring a substantial saving of time and money.
Features include:
Hydrostatistically Driven Rollers – The operator can enjoy the incredible comfort of a proportionally adjustable hydrostat. Declutching is unnecessary: he can smoothly adjust the speed at any moment.
Large Hopper – The hopper has a capacity of 61 litres
Slip Coupling – A larger stone may accidentally become stuck between the vibrating harrow and the rear roller. To avoid that this jam causes the drive to break, it is protected by means of a slip coupling.
Machine-wide Rolling – The ELIET lawnseeder has two crusher rollers in front and a machine wide one at the rear. This provides a good weight spread and evenly flattened soil overall.
Sturdy Construction – It is essential that the machine’s own weight be substantial in order for the machine to function properly
Sideways Adjustable HandleBars
Vibrating Harrow Depth Setting – The lever to set the depth of the harrow action. The operator can continuously adjust the harrow’s depth setting
Vibrating Harrow – The vibrating harrow consists of two rows of teeth that penetrate the ground to a maximum depth of 7 cm (2,7 inch)
Performance |
|
| Engine choice | 6.5 hp Honda GX200 |
| Hydraulic pump | 2 x 10cc |
| Hydraulic Motor | 2 x 400cc |
| Gearbox | 4 Forwards, 2 Reverse Gears |
| Oscillation speed | Slow : 407 rounds/min Fast : 590 rounds/min |
| Seed tray capacity | 61 L |
| Rear roller width | 710 mm |
| Seed tray width | 600 mm |
| Height adjustment of the shaking harrow | 6 x 10 mm |
Design |
|
| Dimensions (L x W x H in mm) | 1990 x 820 x 1140 mm |
| Weight | 385 kg |
Options |
|
| Roller scraper | 1 |
| Smooth roller | 1 |
| Head Weight | 1 |
| Resignation | 1 |
| Seed collection chute | 1 |
