Echo

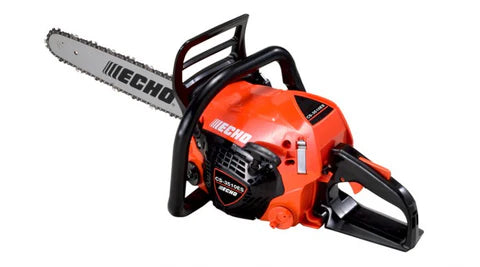

Echo CS-3510ES 14" Bar
Echo CS-3510ES 14" Bar
Couldn't load pickup availability
Echo CS-3510ES 14" Bar
The new CS-3510ES is 8% lighter than its predecessor, the CS-352ES yet has a 15% power gain. It also features an improved, commercial-grade 34.4cc engine and best in class power-to-weight ratio delivering a 1.5kw power output.
A 35cm (14”) 3/8 Tsumara chainsaw bar and Oregon chain for improved cutting efficiency, are fitted as standard, making this an ideal saw for pruning and cutting firewood.
Useful features on this saw include a side-access chain tensioner that allows easy chain adjustment, a momentary switch for quick and easy engine restart and an anti-icing system that prevents the carburettor from freezing in colder months.
Features
Easy start engine
ECHO’s patented system for effortless starting.
Ease of use
Power on and get to work. Intuitive controls and features make your job a breeze.
Light weight
Engineered to weigh less whilst retaining robust durability.
Technical Specifications
| Engine displacement (cc) | 34.4 |
|---|---|
| Output (kw) | 1.5 |
| Output (ps) | 2.1 |
| Dry Weight | 3.7 |
| Fuel tank capacity (l) | 0.28 |
| Chain Oil Tank Capacity (ml) | 230 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.85 |
| Start Assist System | ES-Start |
| Chain Brake | Inertia |
| Saw Chain Pitch (inch) | 3/8 |
| Guide Bar Gauge (inch) | 0.043 / 0.050 |
| Applicable Bar Length (cm/inch) | 35 / 14 |
| Sound pressure level (dB(A)) | 101.5 |
| Sound power level (dB(A)) | 110.4 |
| CO² (g/kW・h) | 886 |
