Echo CS-2511TESC Top Handle Chainsaw (Carving Bar)
Echo CS-2511TESC Top Handle Chainsaw (Carving Bar)
Couldn't load pickup availability
⚠️ WARNING - Top handle chainsaws are designed for professional users only and are intended to be used up trees and not on the ground. These are considered dangerous when used by people who have had no training and are therefore to be purchased by certified arborists only. DO NOT purchase this saw if you do not have the appropriate certification.

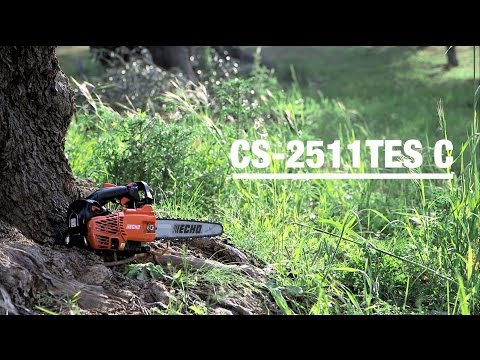

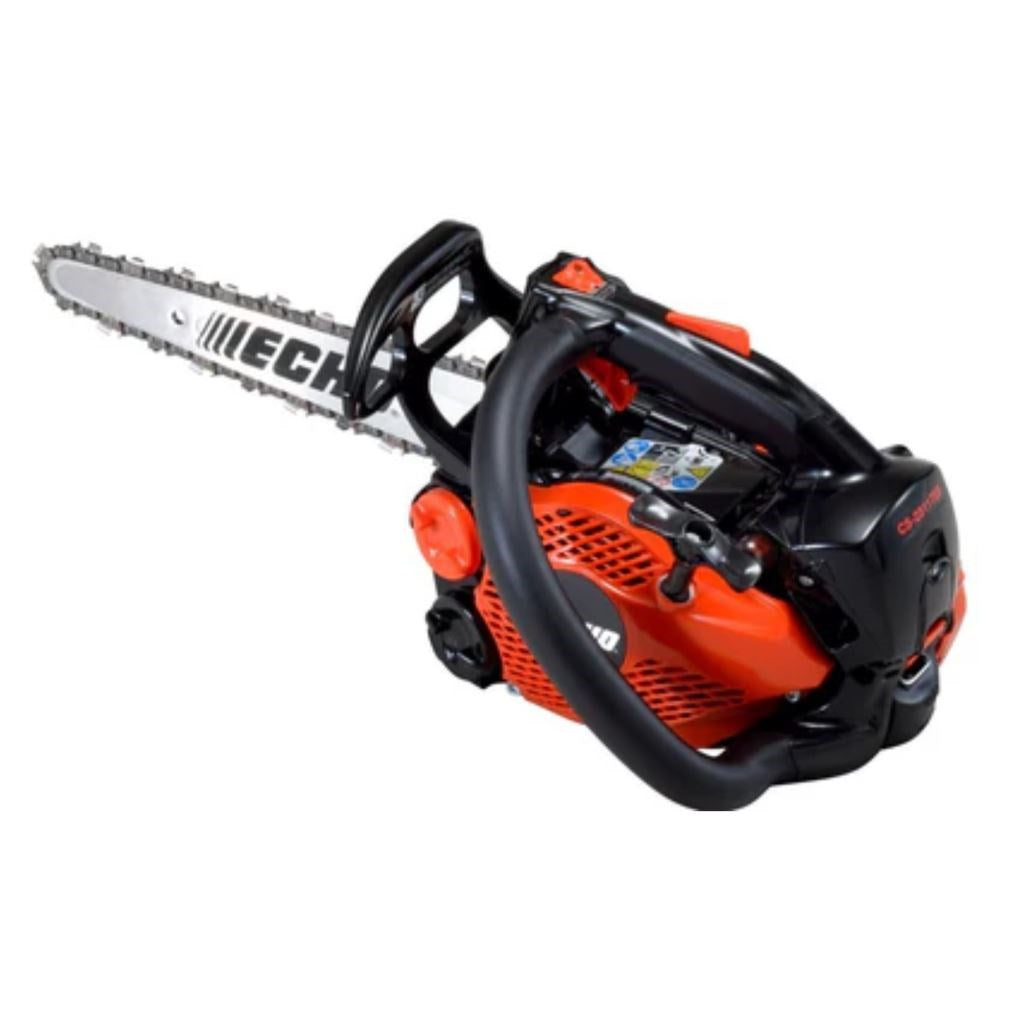

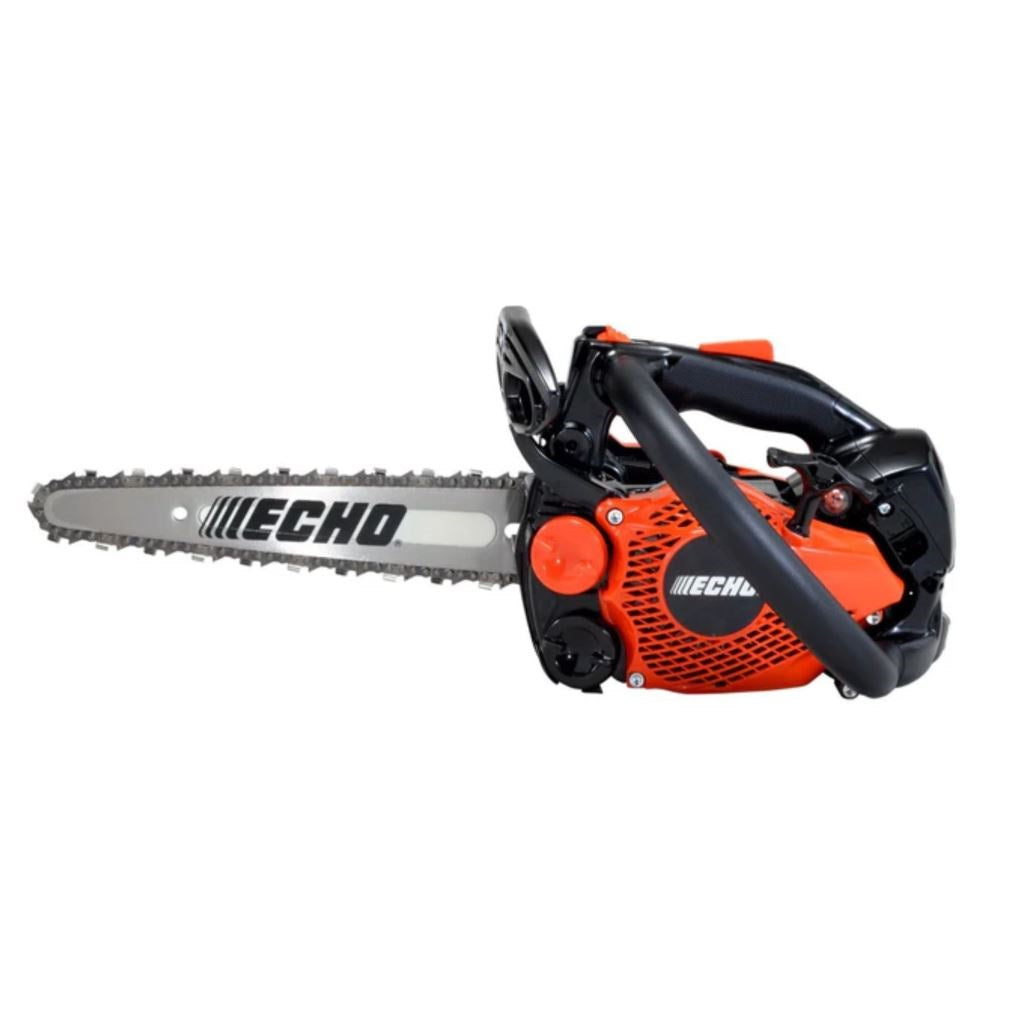

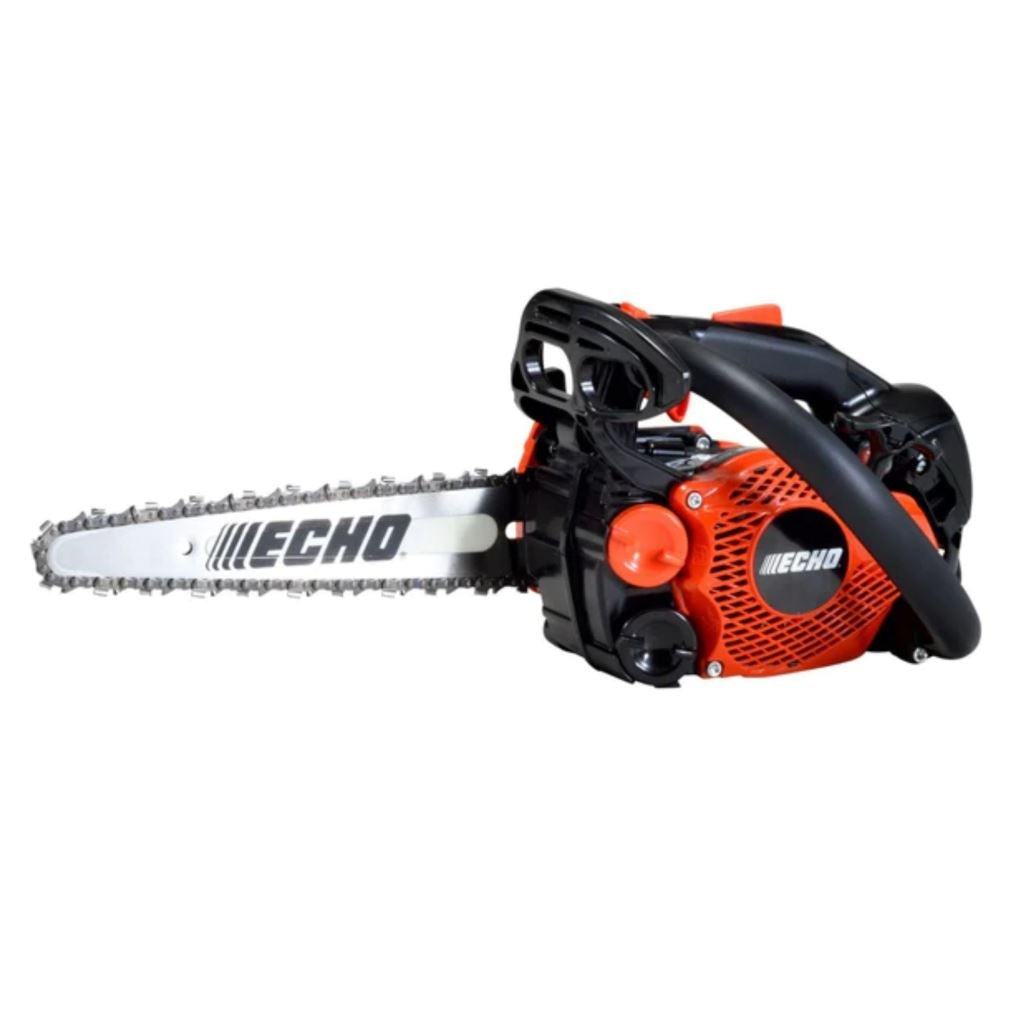

Echo CS-2511TESC Top Handle Chainsaw with 10" Carving Bar
With 10" / 25cm carving bar this lightweight and compact top handle chainsaw is easily a customer favourite of Echo's. This compact model is highly manoeuvrable and is an ideal climbing saw.
Features
Lightweight
Engineered to weigh less whilst retaining robust durability.
Ergonomics
Designed to maximise efficiency and comfort.
Power to weight ratio
Super light-weight design with exceptional power.
Technical Specifications
| Engine displacement (cc) | 25.0 |
|---|---|
| Output (kw) | 1.11 |
| Output (ps) | 1.51 |
| Dry Weight (kg) (undefined) | 2.3 |
| Fuel Tank Capacity (ml) | 190 |
| Chain Oil Tank Capacity (ml) | 140 |
| Fuel Consumption At Maximum Engine Power (L/h) | 0.68 |
| Priming Pump | Yes |
| Ignition System | CDI |
| Start Assist System | ES-start |
| Chain Brake | Inertia |
| Choke w/ Automatic Fast Idle Release | Yes |
| Chain Tensioner | Side |
| Saw Chain Pitch (inch) | 1/4 |
| Guide Bar Gauge (inch) | 0.050 (0.043) |
| Applicable Bar Length (cm/inch) | 25 / 10 |
| Sound pressure level (dB(A)) | 99.7 |
| Sound power level (dB(A)) | 110.3 |
| Vibration Front handle/Rear handle (m/s²) | 3.5/4.0 |
